FCO 240

Standards

DIN 8555 MF 8-GF-200/400-KPZ

Properties and Applications

Open arc flux cored wire, providing 18Cr - 8Ni - 7Mn austenitic stainless steel weld metal. Used for joining 14% Manganese steels and 14% Manganese steels to stainless steels and carbon steels. It is well-suited for buffer layer application on 14% Manganese steels. Due to it's high crack resistant weld metal, suitable for joining dissimilar steels, difficult-to-weld steels, armor plates and buffer layer application in crack sensitive large sections before hardfacing.

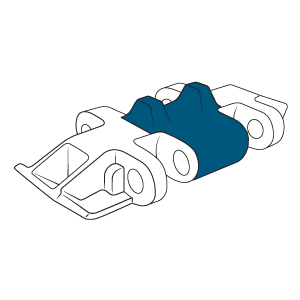

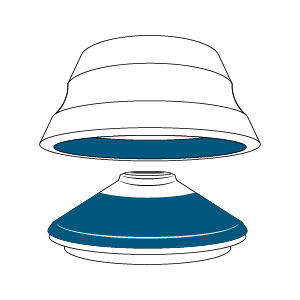

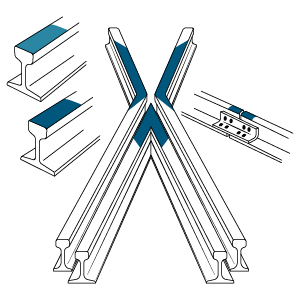

Typical Applications: Used for joining wear plates to bucket, joining bucket teeth, joining and surfacing of rails, switch points, crossovers and press arms.
Fco 240 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

Fco 240 Model Tipik Uygulamalar Fco 240 Model Tipik Uygulamalar Fco 240 Model Tipik Uygulamalar Fco 240 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiFe
Weld Deposit0.150.306.5018.008.0063.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness As Welded (HB)
As welded195
After Cold Working400

Application Information

Welding Positions :
Fco 240 Kaynak Pozisyonu Fco 240 Kaynak Pozisyonu

Polarity:

Fco 240 Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.603.3386

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
38201GJAM21.6015.0115.7Wire Basket Spool (K300MS)
38201I2HM22.40250.01265.0Drum
38201IXAM22.4025.0125.8Wire Basket Spool (K435)
38201J2HM22.80250.01265.0Drum
38201JJAM22.8015.0115.7Wire Basket Spool (K300MS)
38201JXAM22.8025.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
