MG 211

Standards

AWS/ASME SFA - 5.28 ER80S-G
EN ISO 21952 - A G CrMo1Si
TS EN ISO 21952 - A G CrMo1Si
DIN M. No. 1.7339

Properties and Applications

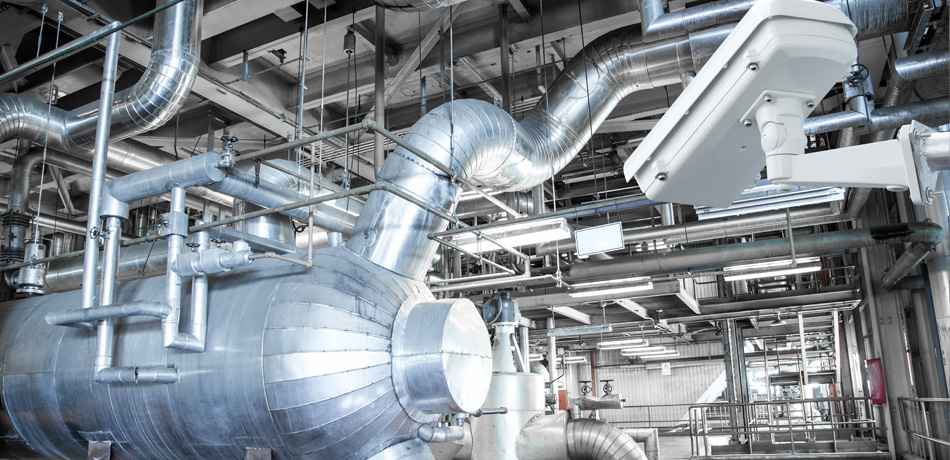

Low-alloy wire electrode for GMA (MIG/MAG) welding of Cr-Mo alloyed creep resistant boiler and pipe steels subjected to operating temperatures up to 570°C. Also suitable for joining C-Mn steels to be postweld heat treated. Observe directions as to pre and post weld heat treatment of base material. CO2 or mixed shielding gases can be used depending on the thickness of the base metal. A thin and homogeneous copper coating increases electrical conductivity and protects the wire from rusting.
Mg 211 Sert Dolgu

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrMo
Welding Wire0.090.601.001.200,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedM216307501820°C → 80
After Heat Treatment(680°C 1 hour)M215006002820°C → 120

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - M21 (%82 Ar + %18 CO2) .

Application Information

Welding Positions :
Mg 211 Kaynak Pozisyonu Mg 211 Kaynak Pozisyonu Mg 211 Kaynak Pozisyonu Mg 211 Kaynak Pozisyonu Mg 211 Kaynak Pozisyonu Mg 211 Kaynak Pozisyonu Mg 211 Kaynak Pozisyonu

Polarity:

Mg 211 Kutuplama DC(+)

Protection Gas:

M20 M21 C1

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
22002BJAM20.8015.0115.7Wire Basket Spool (K300MS)
22002DJAM21.0015.0115.7Wire Basket Spool (K300MS)
22002DMAM21.0015.0115.2Wire Basket Spool (K300)
22002EJAM21.2015.0115.7Wire Basket Spool (K300MS)
22002GJAM21.6015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
