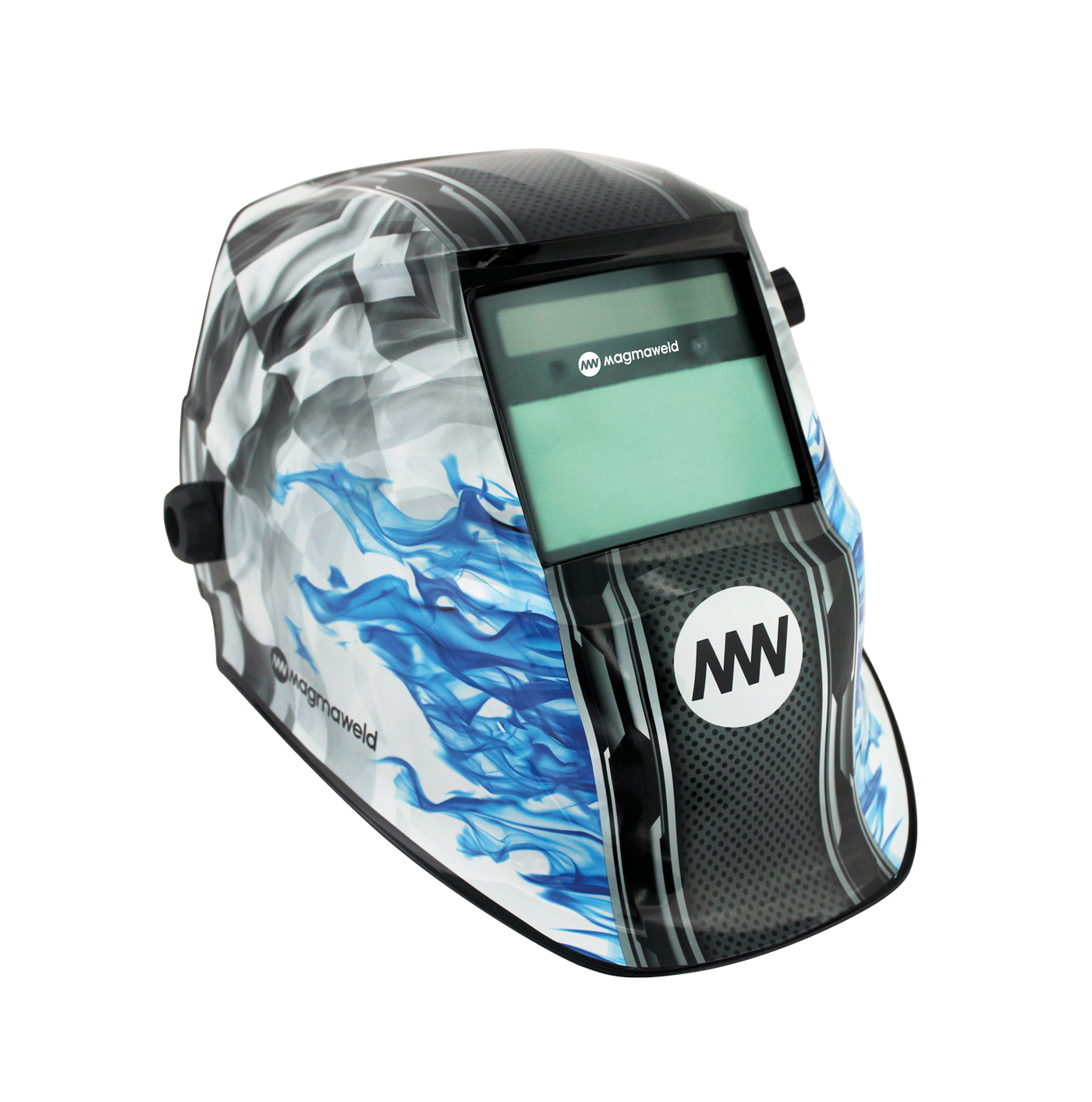

Mkm 620Ma Solarmatik Kaynak Maskesi

MKM 620MA

Product Brochure : PDF
GENERAL
TECHNICAL SPECIFICATIONS
DOCUMENTS

Excellent eye safety(1/1/1/2) against the welding beam with EN 379 Standarts. High precision safety and eye care with preventing strong welding lights. Suitable for arc welding, MIG/MAG welding, Tig welding, plazma arc welding, carbon cutting and grinding.

Cartridge
Optical Class 1/1/1/2
Field Of View 100 x 45 mm
Cartridge Sizes 110 x 90 x 9 mm
Graduation Degrees DIN 9-13
Blackout Control İçeride, Değişken Kararma
Sensors 2
Start/Stop OTOMATIK
Power Source Solar Power, Changeable Battery
Reaction Time (From Light To Darkness) 1/30000 S
Delay Time (Variable Potency Button) 0.1 ~ 1.0 S
Operating Sensitivity >= 10 A(DC) ; >= 10 A(AC)
Operating Temperature -10 ~ + 60 °C
Storage Temperatures -20 ~ + 70 °C
Mask Headpiece
Weight (Net) 525 gr
