MNI 422

Standards

AWS/ASME SFA - 5.14 ERNiCr-3
EN ISO 18274 - A SNi 6082
TS EN ISO 18274 - A SNi 6082
DIN M. No. 2.4806

Materials

DIN Material
X 10 Ni Cr Al Ti 32 20 1.4876
X 5 Ni Cr Al Ti 31 20 1.4958
Ni Cr 15 Fe 2.4816

Properties and Applications

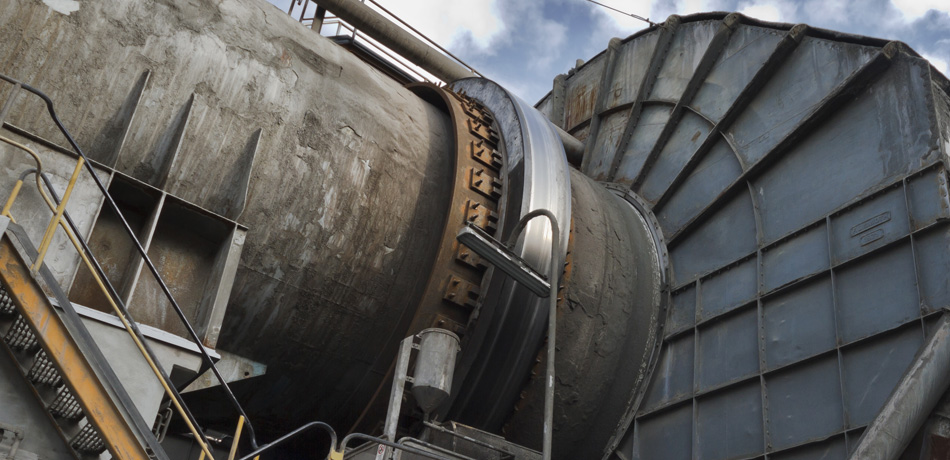

Ni-Cr-Fe alloy is MIG welding wire and gives Ni-20Cr3Mn2,5Nb alloyed weld metal. It is especially used for welding Ni-Cr alloys such as Incoloy 800 with high creep strength, temperature and corrosion resistance, steels containing 5-9% Ni, cryogenic stainless steels used at temperatures as low as -196°C. It is used in the welding of different stainless steels, stainless steels and low alloyed steels and nickel alloys, buffer, plastering passes and coating welds on the surface of steels with low weldability. Welding metal has high crack resistance and corrosion resistance in acid, salt, liquid salt, oxidizing and carburizing atmospheres. In sulphurous atmospheres, weld metal should be used at temperatures lower than 500°C. It has a wide range of applications in chemical, petrochemical, glass, cement industries and repair and maintenance workshops and is generally used in LPG and LNG storage and processing plants, welding of furnace parts, burners, heat treatment equipment, cement kilns, molds, tanks, storage and transportation tanks of liquefied gases.
Mni 422 Sert Dolgu

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrNiNbTiFe
Welding Wire0.030.103.0020.0072.502.400.301.30

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedI15007004020°C → 170-196°C → 160

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Mni 422 Kaynak Pozisyonu Mni 422 Kaynak Pozisyonu Mni 422 Kaynak Pozisyonu Mni 422 Kaynak Pozisyonu Mni 422 Kaynak Pozisyonu Mni 422 Kaynak Pozisyonu Mni 422 Kaynak Pozisyonu

Polarity:

Mni 422 Kutuplama DC(+)

Protection Gas:

I1

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
26002EJBM21.2015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
