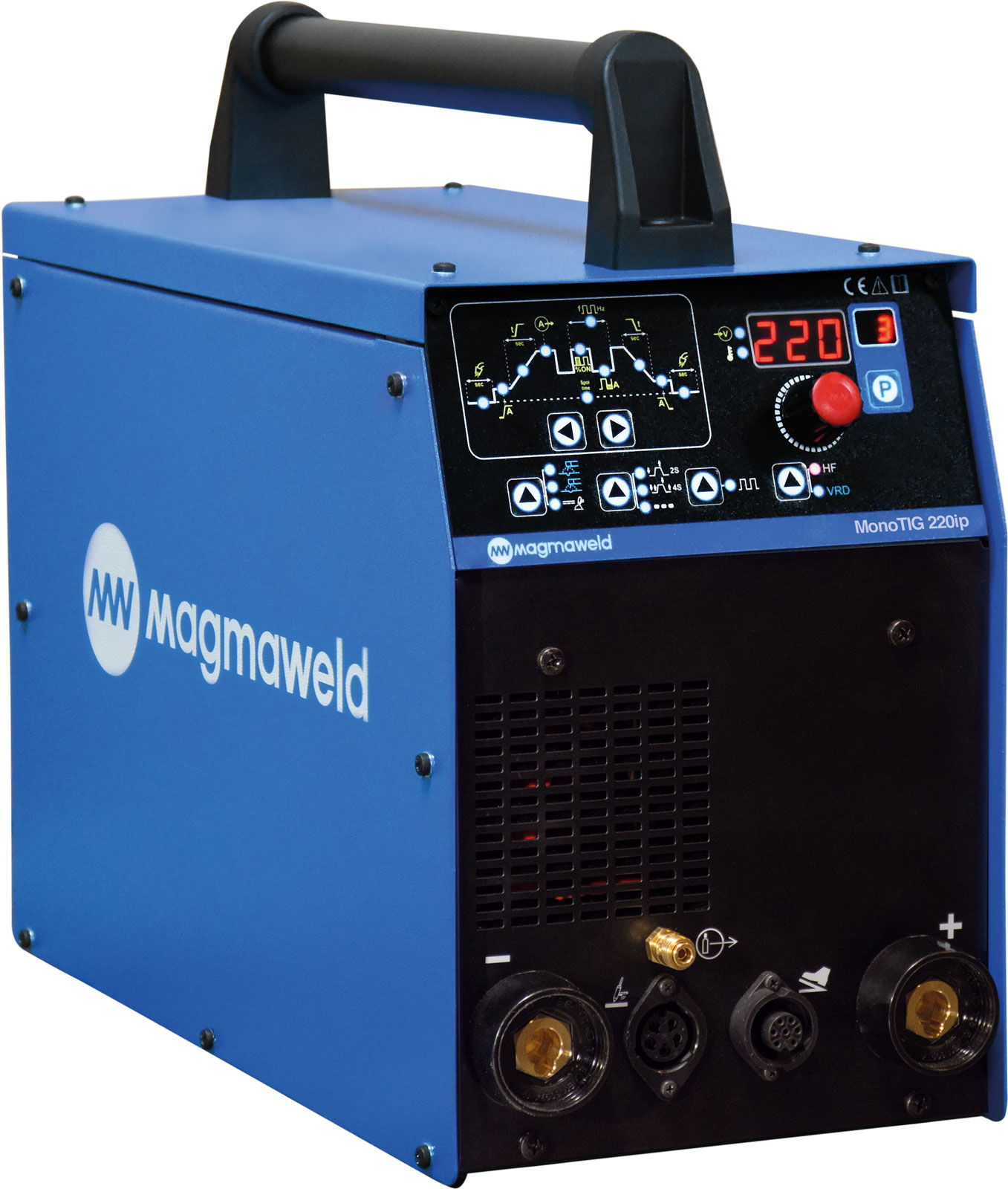

MONOTIG 220IP

Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%. Extra protection against extremely high or low supply voltages.
Due to inverter technology, energy efficiency is higher than the conventional machines.
TIG arc ignition by HF or Lift TIG.
Excellent welding of thin metals due to very stable low current performance and pulse abilities.
Advanced TIG settings; Pre-Gas, Slope-Up, Welding Current, Pulse Frequency and Width, Slope-Down, Post-Gas and Crater Filling.
Due to its coldTIG feature, burr-free, high quality, bright welding seams are obtained.
Offers 100 JOB memory.
Interval timer for spot welding.
2/4 Triggering and Current Adjustment via torch and foot pedal.
Welding parameters are monitored on the digital display.
Excellent welding characteristics for rutile and basic electrodes.
Advanced Stick Electrode options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking.
VRD for hazardous environments such as mines.
Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
Portable design, withstands tough working conditions.
Fan cooling and thermal protection against overheating.
Standard accessories come with the machine.

Power Source
Mains Voltage (1Ph)	230	V
Input Power (MMA)	9,2 (%15)	kVA
Input Power (TIG)	8,05 (%20)	kVA
Power Source Efficiency	MMA 84,48% TIG 80,94%	%
IDLE State Power Consumption	N/A (EN IEC 60974-1,Annex M)	W
Welding Current Range	3 - 220	ADC
Nominal Welding Current	220 (%20)	ADC
Open Circuit Voltage	87	VDC
Electrode Diameter	2.00 - 5.00	mm
Tungsten Electrode Diameter	1.00 - 2.40	mm
Dimensions (l x w x h)	474 x 221 x 395	mm
Weight (Net)	15.5	kg
Cooling Type	Air
Protection Class	IP21

Code	Name	Dimension	Standard/Optional
7907000002	Gas Hose	2 METRE	Standard
7905201603	Ground Clamp And Cable	16mm2/3mt (35 socket)	Standard
7110018004	LAVA TIG 26-4	180A (%35 DC) - 4m	Standard
7910005210	WATER COOLING UNIT	CSP 40	Optional
7910000530	350A TIG TORCH ACCESSORIES/WATER - 4m	LAVA TIG 18W-4 + REGULATOR	Optional
7910000510	250A TIG ACCESSORIES KIT - 4m	LAVA TIG 26-4 + REGULATOR	Optional
7910000200	TIG Carrige	ID SERIES 4 WHEEL	Optional
7910000140	TIG PEDAL	ID TIG-MONOTIG 220IP AKIM AYARLI	Optional
7910000120	TIG PEDAL	ID TIG-MONOTIG 220IP (ON/OFF)	Optional

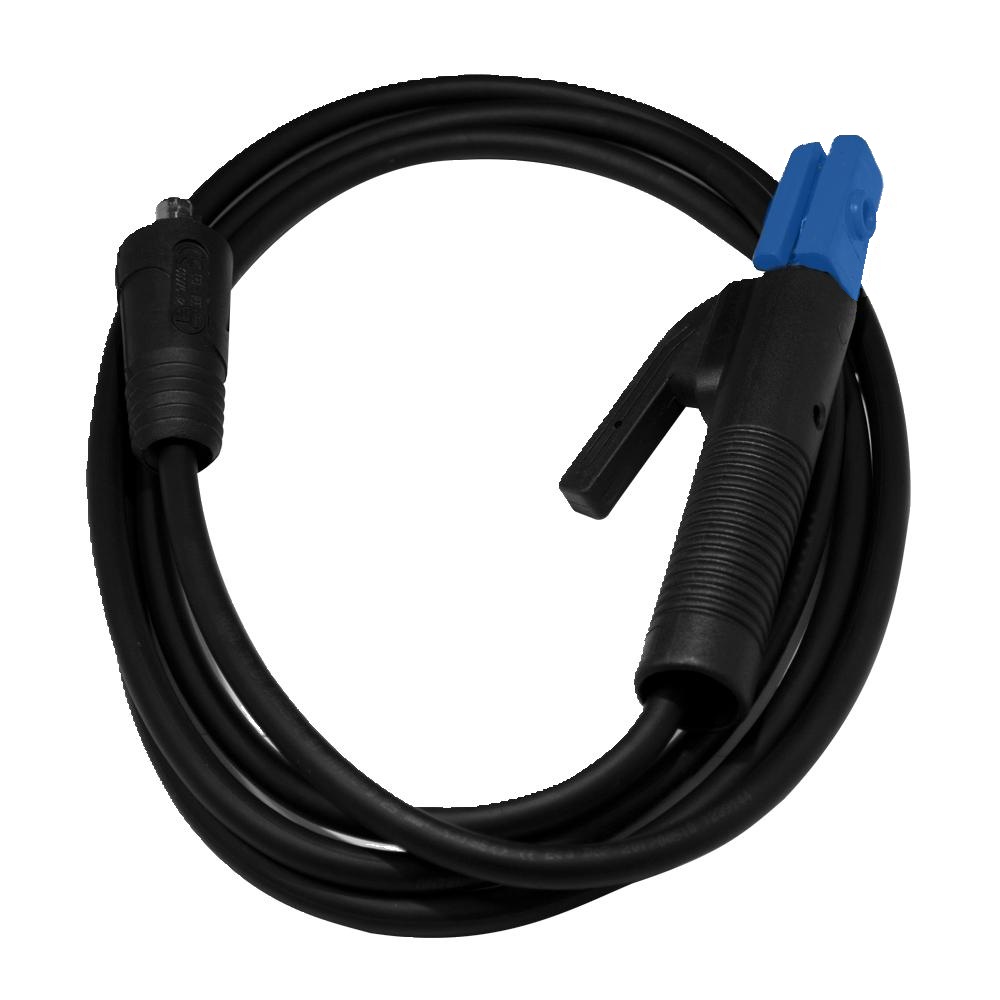

7906201603	Electrode Clamp And Cable	16mm2/3mt (35 socket)	Optional
7110038008	LAVA TIG 18W-8	380A (%100 DC) - 8m	Optional
7110038004	LAVA TIG 18W-4	380A (%100 DC) - 4m	Optional
7110018008	LAVA TIG 26-8	180A (%35 DC) - 8m	Optional
7020001004	Argon Regulator	G5/8'' Bottom Adjustment	Optional
