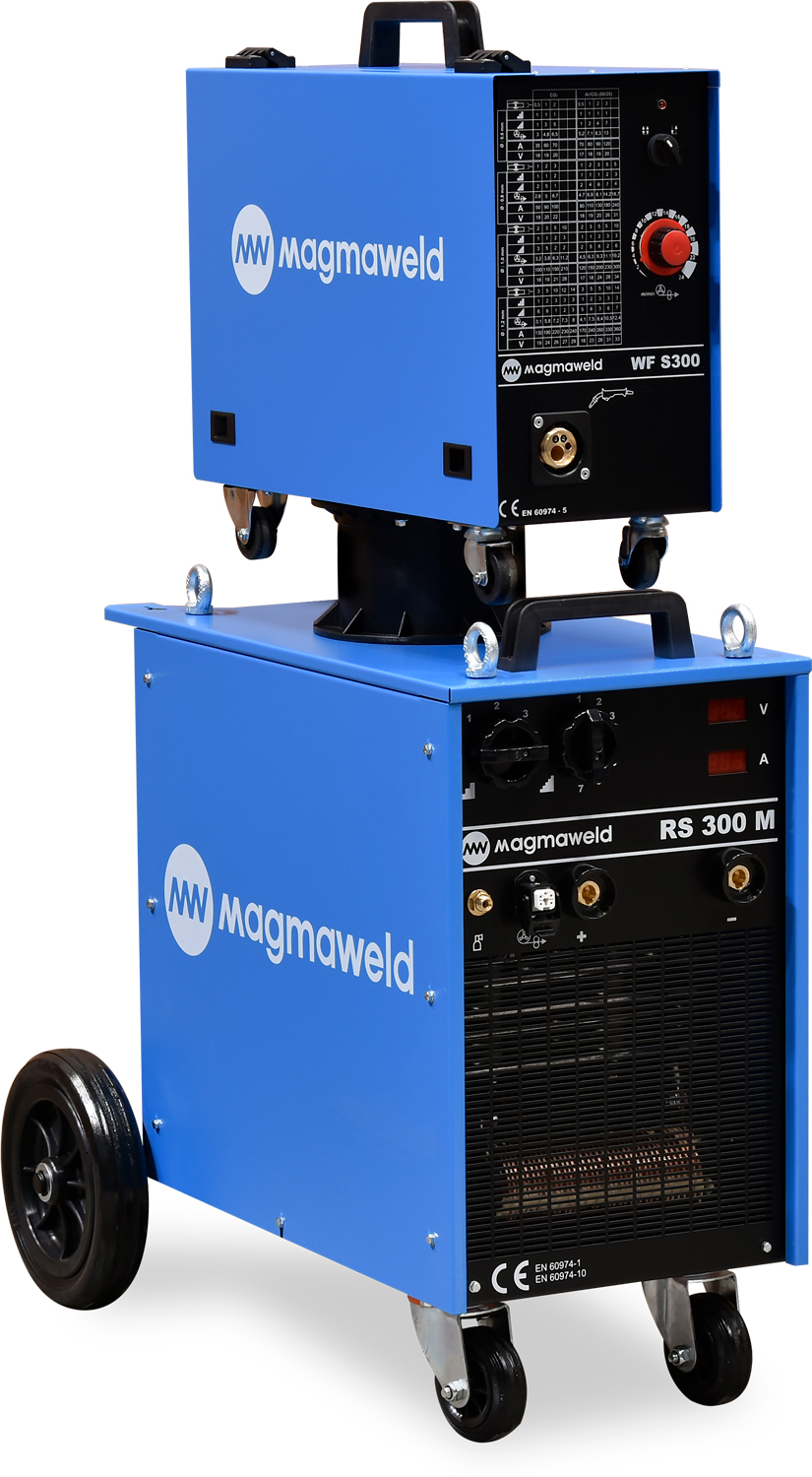

RS 300 M

Products:

Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
Separate wire feeding units are standard. Open Cabinet and Smaller Wire Feeding Units for 5 kg (D200) spools options are available.
4 roll drive system offers good feedability with long torches and offers less deformation on soft wires such as aluminum and flux cored wires.
The Separate wire feeder standard harness length is 5 m and can be extended up to 30 m upon request.
Optimum welding parameters can be obtained from the printed table inside of the wire feed cover.
Wire feed speed and 2/4 trigger adjustments are on the front panel, Soft Start, Pre-Gas, Post-Gas, Burn-Back timer settings, manual wire feeding & gas valve buttons are inside of the wire feeding cabinet.
Welding voltage is adjusted from the course and fine switches; increments are optimized to obtain welding parameters with lowest spatter levels.
Digital displays on the power source for adjusting and monitoring of welding parameters.
Multiple workpiece connections (Inductance outlets) enables optimum parameter adjustment for low spatter welding.
ø300 mm, ø270 mm and ø200 mm spools and drums of any size can be used.
220V AC outlet for CO2 gas heater.
Built in gas cylinder platform with large wheels to ease mobility in workshops.
Fan cooling and thermal protection against overheating.
Standard accessories come with the machine.

Power Source
Mains Voltage (3Ph)	400	V
Input Power	13.8 (%40)	kVA
Welding Current Range	40 - 300	A
Nominal Welding Current	300 (%40)	A
Open Circuit Voltage	19-44	V
Voltage Adjustment Steps	3 x 7
Dimensions (l x w x h)	865 x 510 x 780	mm
Weight (Net)	101	kg
Protection Class	IP21
Wire Feeder System
Welding Wire Diameter	0.60 - 1.20	mm
Standard Roller Groove Size	0.80 - 1.00	mm
Wire Feeder Roller Diameter	4x37	mm
Wire Feeding Speed	1 - 24	m/dk
Torch Trigger Control	2 / 4
Spool Capacity	20	kg
Dimensions (l x w x h)	560 x 225 x 450	mm
Weight (Net)	23	kg

Code	Name	Dimension	Standard/Optional
7907000002	Gas Hose	2 METRE	Standard

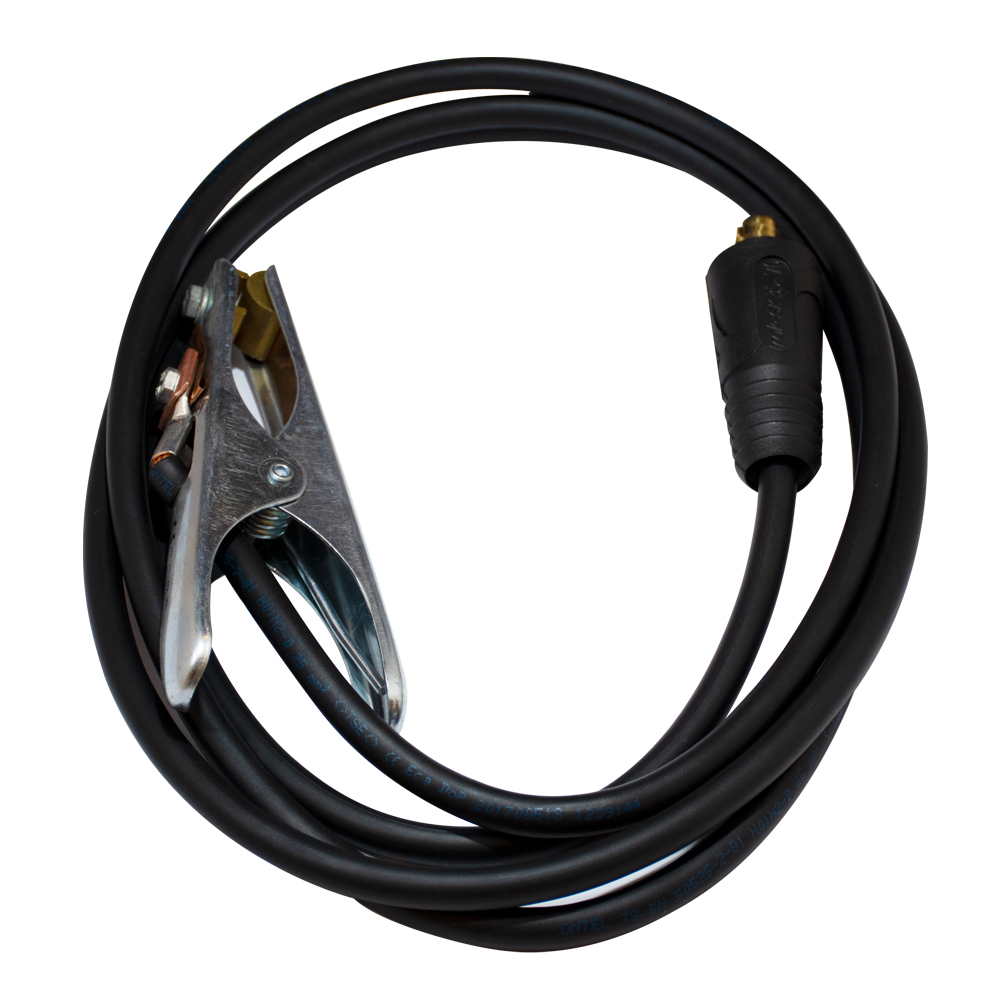

7905202505	Ground Clamp And Cable	25mm2/5mt (35 soket)	Standard
7120035003	LAVA MIG 35-3	320A (%60 CO2) - 3m	Optional
7020009002	CO2 HEATER	MAGMAWELD (220V / 230V-75W)	Optional
7020001005	CO2 Regulator	W21,8x1/14'' Bottom Adjustment	Optional
7020001004	Argon Regulator	G5/8'' Bottom Adjustment	Optional
