EH 360Si

Standards

EN 14700 E Z Fe2
TS EN 14700 E Z Fe2
DIN 8555 ~E 2-UM-60-G

Properties and Applications

Thick basic-covered electrode for depositing wear resisting overlays on structural members subjected to severe abrasive wear. Weld metal can be machined only by grinding.  In case of very crack sensitive base metals, a tough buffer layer, made with ESB 42 or EI 307B electrodes, is required, before hardfacing. Preferred to use with DC, electrode in positive (+) pole and also possible to use with AC.

Typical Applications: Suitable for hardfacing applications of crushing and grinding of coal, mineral, soil, rocks, excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws.
Eh 360Si Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

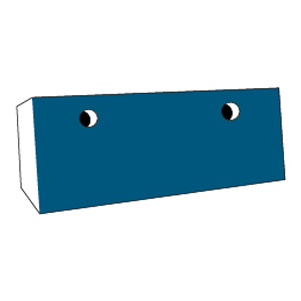

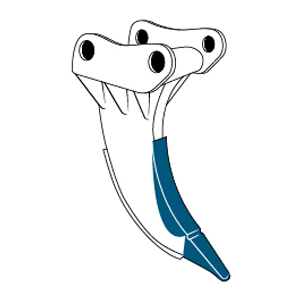

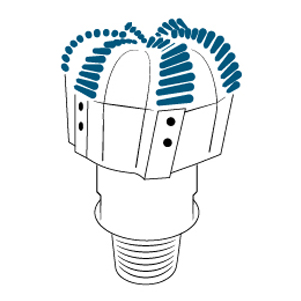

Typical Applications

Eh 360Si Model Tipik Uygulamalar Eh 360Si Model Tipik Uygulamalar Eh 360Si Model Tipik Uygulamalar Eh 360Si Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0.654.000.552.0092.80

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded60

Application Information

Welding Positions :
Eh 360Si Kaynak Pozisyonu Eh 360Si Kaynak Pozisyonu Eh 360Si Kaynak Pozisyonu Eh 360Si Kaynak Pozisyonu Eh 360Si Kaynak Pozisyonu Eh 360Si Kaynak Pozisyonu

Polarity:

Eh 360Si Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
3.25x35090-1400,66441,07122
4.00x450140-1800,68221,57122
5.00x450180-2100,68131,85122

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
18018NREM23.25x3501485.0315.4Cardboard Box
18018SSEM24.00x450966.5320.4Plastic Box
18018YSEM25.00x450646.5319.9Cardboard Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
