EH 361

Standards

EN 14700 E Fe8
TS EN 14700 E Fe8
DIN 8555 E 6-UM-60

Properties and Applications

Thick basic covered electrode for hardfacing of parts subjected to high metal-to-metal friction, mineral abrasion and moderate impact. A tough buffer layer with ESB 42 is recommended before hardfacing, if base metal has high carbon content and low weldability. Heat treatment after hardfacing will decrease as-welded hardness. Weld metal can be grinded and machined by carbide-tipped tools.

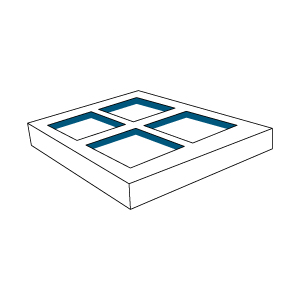

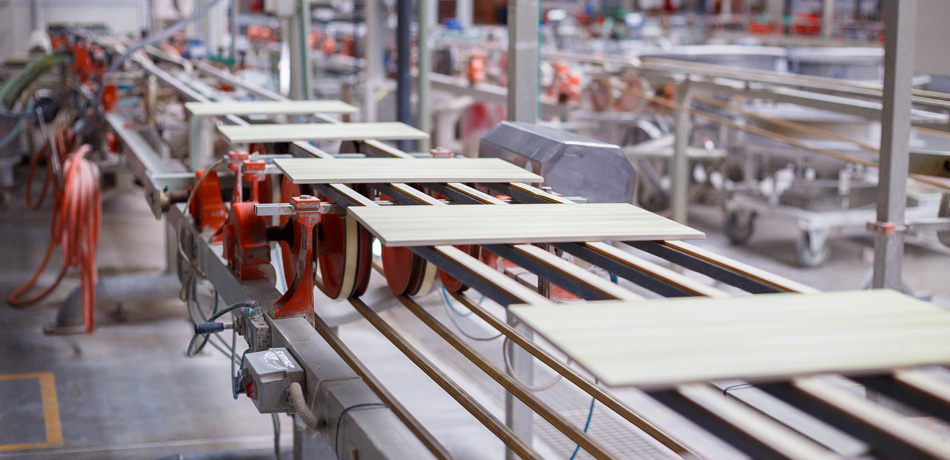

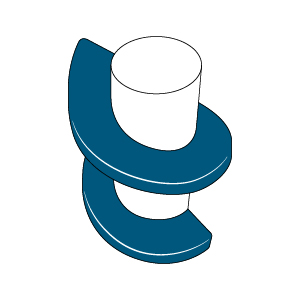

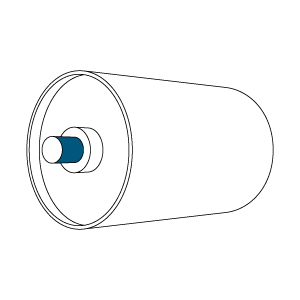

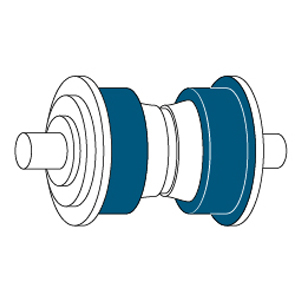

Typical Applications: Hardfacing of ceramic tile moulds, mixer blades, crushers, earth moving equipments, hot cut-offs, shear blades, dies for pressure casting, scraper blades, conveyors and rollers.
Eh 361 Sert Dolgu

Typical Applications

Eh 361 Model Tipik Uygulamalar Eh 361 Model Tipik Uygulamalar Eh 361 Model Tipik Uygulamalar Eh 361 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0,502.600.409.0087.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded57

Application Information

Welding Positions :
Eh 361 Kaynak Pozisyonu Eh 361 Kaynak Pozisyonu Eh 361 Kaynak Pozisyonu Eh 361 Kaynak Pozisyonu Eh 361 Kaynak Pozisyonu Eh 361 Kaynak Pozisyonu

Polarity:

Eh 361 Kutuplama DC(+)
Eh 361 Kutuplama AC

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
3.25x35090-1300,67411,18134

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
18029NREM23.25x3501415.0315.4Cardboard Box

Storage & Re-Drying Information

>It has to be dried at 350°C for 1 hour.
>It can be dried maximum 5 times.
