EI 307B

Standards

AWS/ASME SFA - 5.4 ~E307-15
EN ISO 3581 - A E 18 8 Mn B 22
TS EN ISO 3581 - A E 18 8 Mn B 22
DIN M. No. 1.4370

Approvals & Certificates

Materials

EN Material ASTM
X3CrNiMo17-13-3 1.4436 316
X5CrNiMo17-12-2 1.4401 316

Properties and Applications

Basic coated electrode for joining dissimilar steels and depositing buffer layer before hardfacing and claddings on ferritic steels. The weld metal consists of austenitic Cr-Ni-Mn steel with possible small amounts of delta ferrite. The weld metal is highly crack resistant and therefore suited to joining difficult to weld steels and depositing stress relaxing buffer layers on crack sensitive base metal prior hardfacing deposits. Weld metal work hardens by impact and pressure. Suitable for armour plates, rail, cross-over, crane wheels, idlers, which are subjected to dynamically loading, pressure, impact and abrasion. It is non-scaling up to 850°C and highest operating temperature for dissimilar steel joints is 300°C. In the case of higher temperatures, use ENI 422 electrodes. Used with DCEP (DC+)

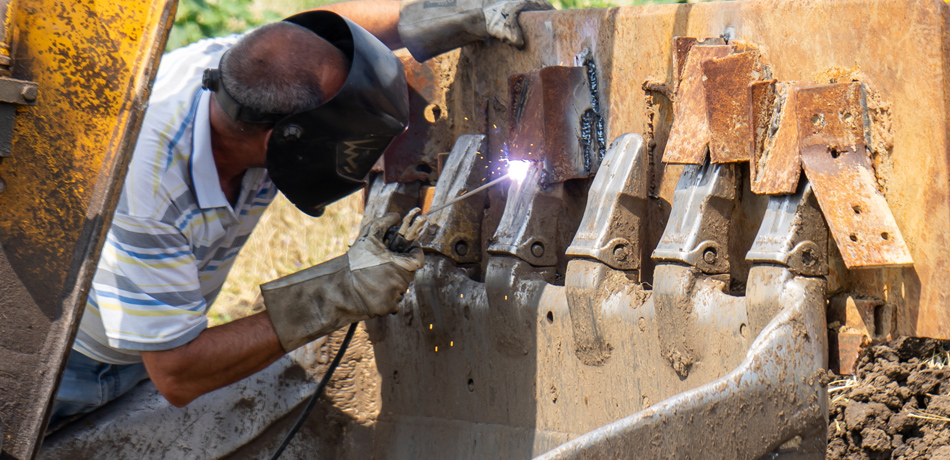

Ei 307B Sert Dolgu

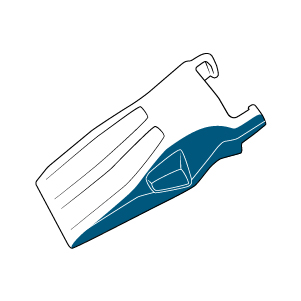

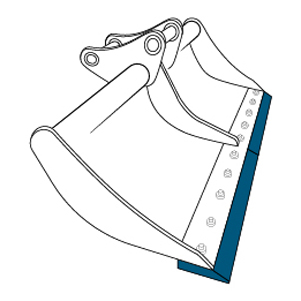

Typical Applications

Ei 307B Model Tipik Uygulamalar Ei 307B Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNi
Weld Deposit0.080.306.0019.509.50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded5006403820°C → 70

Application Information

Welding Positions :
Ei 307B Kaynak Pozisyonu Ei 307B Kaynak Pozisyonu Ei 307B Kaynak Pozisyonu Ei 307B Kaynak Pozisyonu Ei 307B Kaynak Pozisyonu Ei 307B Kaynak Pozisyonu

Polarity:

Ei 307B Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x25050-800,541290,93106
2.50x30050-800,541090,93106
3.25x30080-1200,6561,2106
3.25x35080-1200,6491,2104
4.00x350100-1650,59322,13107
5.00x350140-2200,59212,75105

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
13001GJEM22.50x300971.81016.3VAC Box
13001MJEM23.25x300601.81016.3VAC Box
13001NJEM23.25x350582.01021.0VAC Box
13001QJEM24.00x350382.01021.0VAC Box
13001TJEM25.00x350252.01021.0VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
