EI 312BLUE

Standards

AWS/ASME SFA - 5.4 ~E312-16
EN ISO 3581 - A E 29 9 R 12
TS EN ISO 3581 - A E 29 9 R 12

Properties and Applications

EI 312BLUE is a rutile coated stainless steel electrode for joint welding of different steels and for coating applications on ferritic steels. The ferritic-austenitic Cr-Ni alloy weld metal contains about 50% delta-ferrite and is scale resistant up to +1100°C. Due to its high crack resistance, it is suitable for joint welding of low weldability steels and for buffer layer applications prior to hardfacing on crack sensitive steels. It is especially used in crack repair, buffer pass applications, repair of eaten or cracked threads and buffer layer applications of cutting blades on mold and tool steels. It is also suitable for welding galvanized steels. EI 312BLUE provides superior performance when joining different steels, welding tool steels, manganese steels and spring steels. It can be welded with both AC and DC current, has a fine metal drop transition and ensures good fusion with base metal surfaces. It is characterized by soft melting, good seam appearance and easy to clean slag.

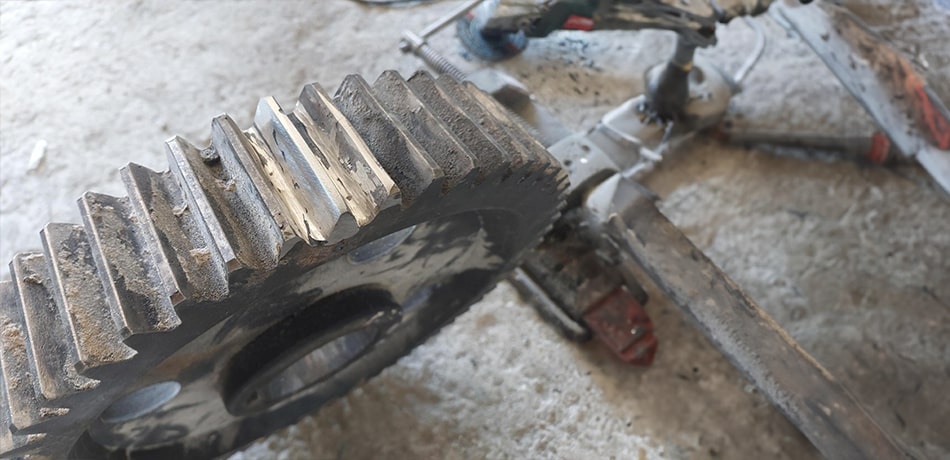

Ei 312Blue Sert Dolgu

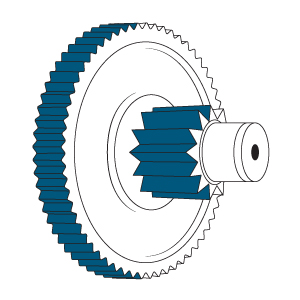

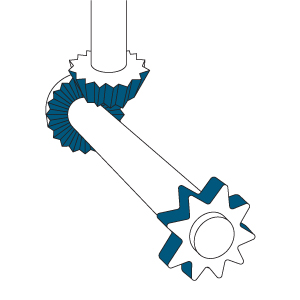

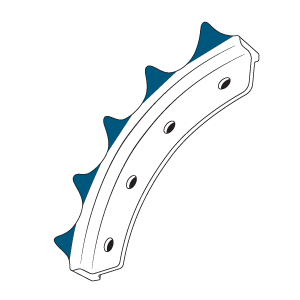

Typical Applications

Ei 312Blue Model Tipik Uygulamalar Ei 312Blue Model Tipik Uygulamalar Ei 312Blue Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNi
Weld Deposit0.091.100.7529.009.50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded6808002520°C → 50

Application Information

Welding Positions :
Ei 312Blue Kaynak Pozisyonu Ei 312Blue Kaynak Pozisyonu Ei 312Blue Kaynak Pozisyonu Ei 312Blue Kaynak Pozisyonu Ei 312Blue Kaynak Pozisyonu Ei 312Blue Kaynak Pozisyonu

Polarity:

Ei 312Blue Kutuplama DC(+)
Ei 312Blue Kutuplama AC

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x30050-800.531020.75108
3.25x35080-1100.56511.10107
4.00x350110-1600.58331.43108

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
13037GJFM22.50x300961.81018.5VAC Box
13037NJFM23.25x350582.01021.5VAC Box
13037QJFM24.00x350392.01021.5VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
