EI 316L

Standards

AWS/ASME SFA - 5.4 E316L-16
EN ISO 3581 - A E 19 12 3 L R 32
TS EN ISO 3581 - A E 19 12 3 L R 32
DIN M. No. 1.4430

Approvals & Certificates

Materials

EN Material ASTM
X3CrNiMo17-13-3 1.4436 316
X5CrNiMo17-12-2 1.4401 316
GX2CrNiMo19-11-2 1.4409
X2CrNiMo17-12-2 1.4404 316L
GX5CrNiMo19-11-2 1.4408 CF-8M
X2CrNiMo18-14-3 1.4435 316L
X6CrNiMoTi17-12-2 1.4571 316 Ti
X6CrNiMoNb17-12-2 1.4580 316 Cb
G-X5CrNiMoNb19-11-2 1.4581
X10CrNiMo18-12 1.4583 318

Properties and Applications

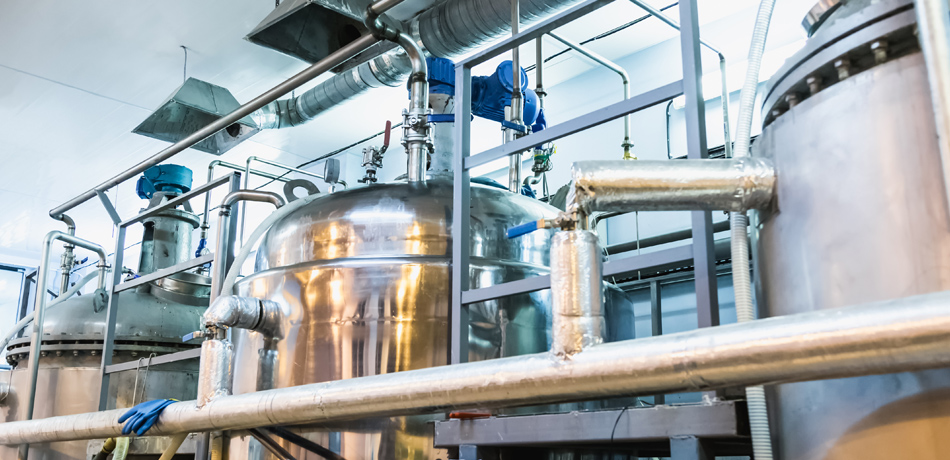

Rutile type stainless steel electrode for welding austenitic stainless Cr-Ni-Mo steels or cast steels, having an extra low carbon content. For operating temperatures of up to 400°C. Especially suitable for welding of stainless steel chemical tanks and pipes in chemical, textile, paint, paper industries. Possible to use equally well both with AC and DC. Easy arc striking and re-striking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface, easily removable slag.
Ei 316L Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMo
Weld Deposit0.030.800.9019.0012.002.80

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded4605604020°C → 70

Application Information

Welding Positions :
Ei 316L Kaynak Pozisyonu Ei 316L Kaynak Pozisyonu Ei 316L Kaynak Pozisyonu Ei 316L Kaynak Pozisyonu Ei 316L Kaynak Pozisyonu Ei 316L Kaynak Pozisyonu

Polarity:

Ei 316L Kutuplama DC(+)
Ei 316L Kutuplama AC

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.00x25050-700,551750,45106
2.00x30040-600,551590,45106
2.50x25050-800,541260,95105
2.50x30050-800,561000,99106
3.25x30080-1200,54601,36106
3.25x35080-1200,56501,44106
4.00x350100-1650,57331,97106
5.00x350140-2200,57242,57106

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
13017CIEM22.00x2501521.51014.1VAC Box
13017DBEM22.00x300881.0100.0Plastic Box
13017DDEM22.00x3002212.538.0Plastic Box
13017DJEM22.00x3001541.81018.1VAC Box
13017FIEM22.50x2501001.51016.5VAC Box
13017GBEM22.50x300541.01213.5Plastic Box
13017GDEM22.50x3001352.538.0Plastic Box
13017GJEM22.50x300951.81018.2VAC Box
13017MDEM23.25x300822.538.0Plastic Box
13017MEEM23.25x3001324.0312.8Plastic Box
13017MJEM23.25x300581.81018.5VAC Box
13017NBEM23.25x350281.0100.0Plastic Box
13017NDEM23.25x350702.538.1Plastic Box
13017NEEM23.25x3501134.0312.8Plastic Box
13017NJEM23.25x350562.01020.7VAC Box
13017QBEM24.00x350191.0100.0Plastic Box
13017QDEM24.00x350462.538.0Plastic Box
13017QJEM24.00x350372.01018.6VAC Box
13017TEFM25.00x350605.0315.8Plastic Box
13017TJEM25.00x350242.0100.0VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
>It has to be dried at 350°C for 2 hours.
