ENI 400 (Ni)

Standards

AWS/ASME SFA - 5.15 ENi-CI
EN ISO 1071 E C Ni - CI 3
TS EN ISO 1071 E C Ni - CI 3

Properties and Applications

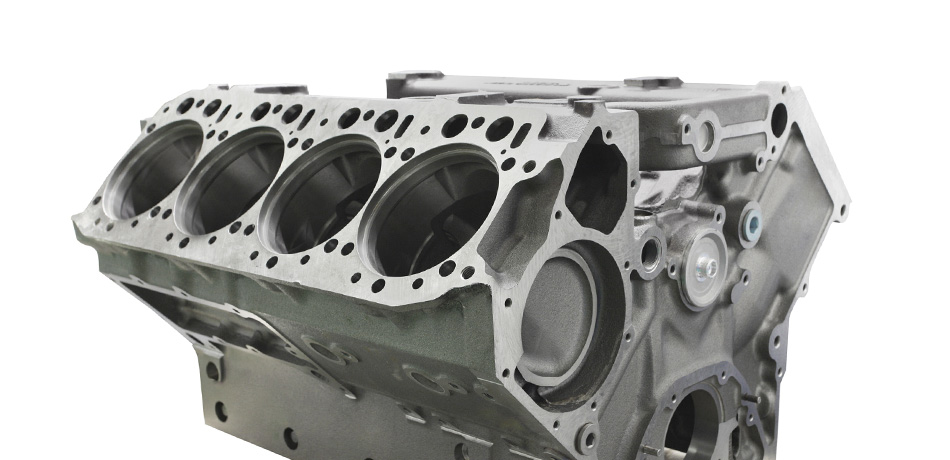

Electrode having a pure nickel core wire, designed for the welding of cast iron with preheat. Suitable for welding grey cast iron, white and grey mallable cast iron, nodular cast iron. For reparing cracked an worn castings or joining cast iron parts to components made of steel, copper and nickel materials. Provides easy arc striking, restriking and stable arc. Weld metal is machinable. Weld short beads (approx. 30 to 50 mm long). For reducing weld residual stresses, hammer peen welds before cooling. Preferably used with DCEP but possible to use also with AC.
Eni 400 (Ni) Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnNiFe
Weld Deposit0,500.250.2598.001.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded~160

Application Information

Welding Positions :
Eni 400 (Ni) Kaynak Pozisyonu Eni 400 (Ni) Kaynak Pozisyonu Eni 400 (Ni) Kaynak Pozisyonu Eni 400 (Ni) Kaynak Pozisyonu Eni 400 (Ni) Kaynak Pozisyonu Eni 400 (Ni) Kaynak Pozisyonu

Polarity:

Eni 400 (Ni) Kutuplama DC(+)
Eni 400 (Ni) Kutuplama AC

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)Weld Deposit(Kg)/1Kg Consumed ElectrodeNumber of Electrodes/1Kg Weld DepositWeld Metal Deposition Rate (Kg/h)Efficiency(%)
2.50x30050-700,66940,52102
3.25x30090-110
3.25x35090-110
4.00x400110-1400,69261,26103

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
16050GJEM22.50x3001081.81018.2VAC Box
16050MDEM23.25x300902.538.0Plastic Box
16050MJEM23.25x300631.81018.2VAC Box
16050NJEM23.25x350572.0100.0VAC Box

Storage & Re-Drying Information

>It can be dried maximum 5 times.
> It has to be dried at 150°C for 1 hour.
