ESC 90G

Standards

AWS/ASME SFA - 5.5 E9010-G
EN ISO 2560 - A E 50 2 1NiMo C 21
TS EN ISO 2560 - A E 50 2 1NiMo C 21

Properties and Applications

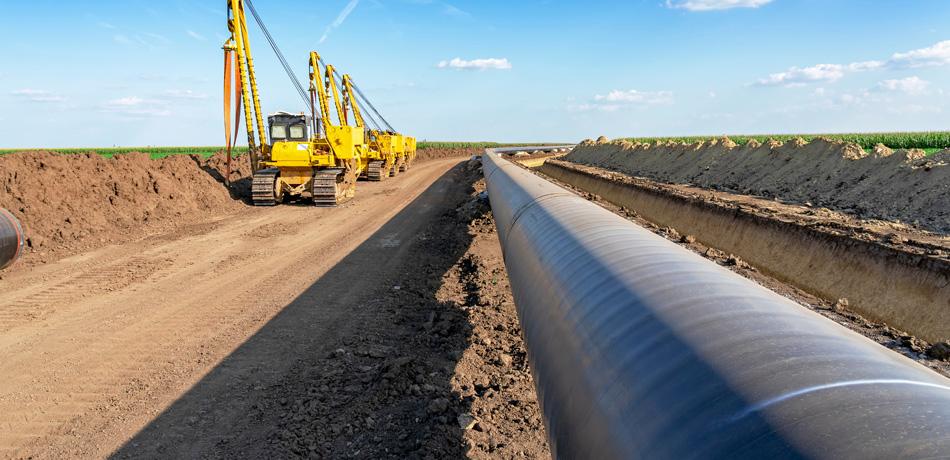

Medium coated and nickel (Ni) and molibdenum (Mo) alloyed cellulosic type electrode for welding high strength steels and pipes. Due to its high penetration, it is suitable for root pass and fill passes in vertical down direction for use in pipe-line construction, shipbuilding, storage vessels and assembly works. DCEN (-) is ideal in root passes DCEP (+) is recommended for fill and cap passes in vertical down position.
Esc 90G Sert Dolgu

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnNiMo
Weld Deposit0.140.301.200.600.30

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded54065021-20°C → 55-30°C → 45

Application Information

Welding Positions :
Esc 90G Kaynak Pozisyonu Esc 90G Kaynak Pozisyonu Esc 90G Kaynak Pozisyonu Esc 90G Kaynak Pozisyonu Esc 90G Kaynak Pozisyonu Esc 90G Kaynak Pozisyonu Esc 90G Kaynak Pozisyonu

Polarity:

Esc 90G Kutuplama Root Pass DC (-)
Esc 90G Kutuplama Filler Pass DC (+)

Welding Parameters & Efficiency :

Diameter x Length (mm)Current (A)
3.25x35060-120

Packaging Information

Product CodeDiameter X Length (mm)Pieces per Box (~)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
11409NREM23.25x3501785.0315.3Cardboard Box
