ESR 30

Datasheet

Standards

AWS/ASME SFA - 5.1	E6013
EN ISO 2560 - A	E 38 A RR 12
TS EN ISO 2560 - A	E 38 A RR 12

Approvals & Certificates

TSE

Materials

EN	DIN
	M2 (Armco Iron)

Properties and Applications

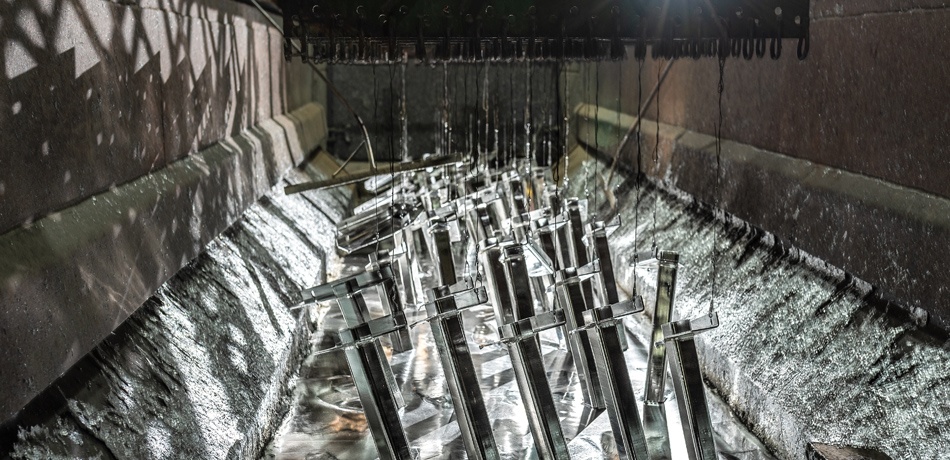

Rutile type heavy coated electrode which is especially used in fabrication and repair welds of molten zinc bath made of Armco iron and very low carbon steels. Weld metal ensures high crack resistance against the effect of molten zinc. Possible to use equally well both with AC and DC.

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn
Weld Deposit	0.02	0.15	0.40

Type of Analysis

Weld Deposit

0.02

0.15

0.40

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	380	440	25	20°C → 70

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

380

440

20°C → 70

Application Information

Welding Positions :

Polarity:

DC(-)

Welding Parameters & Efficiency :

Diameter x Length (mm)	Current (A)
2.50x350	60-90
3.25x350	100-140
4.00x350	140-180
5.00x350	200-240

Packaging Information

Product Code	Diameter X Length (mm)	Pieces per Box (~)	Weight Of The Box (kg)	Boxes Per Package	Weight Of The Package	Packaging Type
11105HQEM2	2.50x350	125	2.5	6	15.4	Cardboard Box
11105HREM2	2.50x350	250	5.0	3	15.4	Cardboard Box
11105NQEM2	3.25x350	73	2.5	6	15.4	Cardboard Box
11105NREM2	3.25x350	146	5.0	3	15.4	Cardboard Box
11105QREM2	4.00x350	101	5.0	3	15.4	Cardboard Box
11105TREM2	5.00x350	66	5.0	3	15.4	Cardboard Box

Storage & Re-Drying Information

>Generally not required. If required, redry for 1 hour at 110°C.
